Description
An insect light trap for front of house

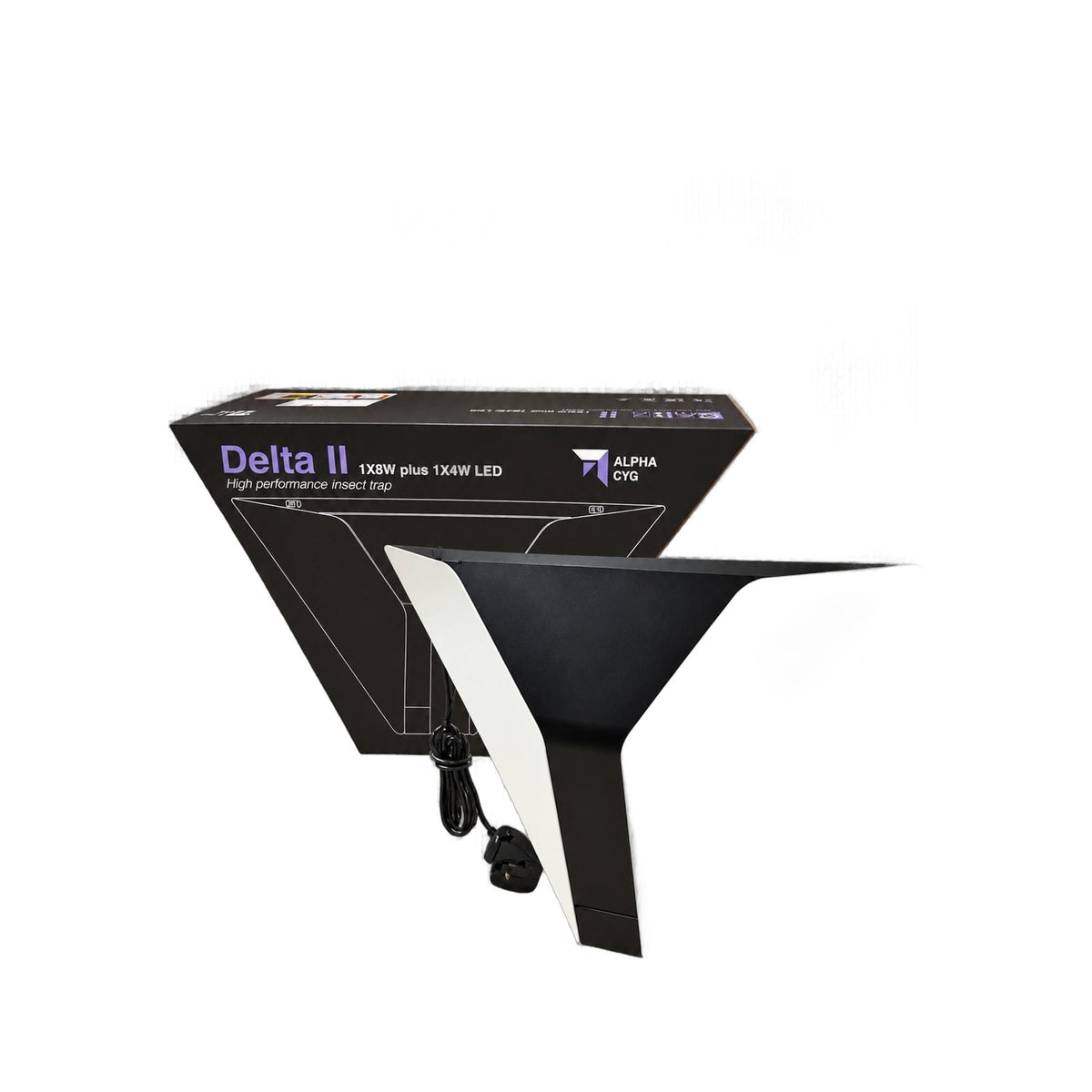

The Bentz Jaz Delta II is a triangular, wall-mounted UV LED insect light trap with a glueboard, made for front-of-house areas such as restaurants, cafés and hotel lobbies. Its housing is powder-coated pre-galvanised steel with rounded edges, it weighs 1.6 kg, and one unit covers an effective area of 50–80 m² on 12 W of power.
Light that draws flies in
The Delta II runs an 8 W and a 4 W UV LED in a T-shaped placement, at 365 nm. Bentz Jaz's Delta II flyer describes 365 nm as the peak of the UV range proven to be most attractive to flies, and the second tube was added to invite flies deep inside the unit.
A proprietary diffusion cover lets the UV through with a glare-free glow that is more attractive to flies than direct light, and resists ageing from UVA exposure.
Inside, the 420 × 240 mm glueboard is folded into a funnel. Once flies are drawn in, they are surrounded by adhesive on all sides.
Field simulation results
In field-simulation chamber trials reported in the Delta II flyer, the Delta II (8 W + 4 W) caught 32% more flies on average within 120 minutes than an industry-leading 30 W fluorescent uplight ILT (2 × 15 W), while using 12 W.
Installation and servicing
Fix the drill template to the wall, drill two 8 mm holes, fit wall plugs and self-tapping screws, hang the unit by its two keyholes and connect the power. Always disconnect the power before servicing.
Open the magnetic swing doors, slide the used glueboard out along the rails and slide a new one in. The fully open design has no hidden corners: clean it with a dry cloth, without solvents.
To change an LED tube, align its latch and push it along the mounting surface until it clicks into the USB-C connector; the power plug is also replaceable through USB-C.
Where it fits
The Delta II suits fly-control contracts in F&B outlets, where the unit is on show to customers and technicians need to service it quickly. It is built under ISO 9001:2015 quality control and carries a 2-year quality guarantee.
